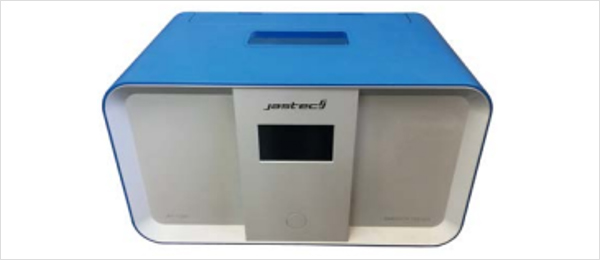

Combination Emission Analyzer

Model : JET-1000

  • Combination Emission Tester for Gasoline and Diesel

    Accurate analysis of gas components for CO, HC, CO2, O2, NO, and NO2

    Accurate analysis of Opacity (%)

    NO, NO2, Opacity (%) can be measured simultaneously about diesel vehicle

    Advanced control system

    - LCD display for menu navigation and display of measurement values

    - Perfect PC interface and control

Specification

Gasoline Diesel
Parameter CO, HC, CO2, O2, NO, NO2, Lambda Opacity(%)
Measuring Method CO, HC, CO2 : NDIR (Non-dispersive infrared)
O2, NO, NO2 : Electrochemical Cell
The partial flow Opacimeter
Effective length : 215mm
Emitter : Green LED
Receiver : Photodiode
Measuring
Range
CO 0.00 ~ 10.00% (0.01%) 0 ~ 100% (0.1%)
CO2 0.00 ~ 20.00% (0.1%)
HC 0 ~ 10,000ppm (1ppm)
O2 0.00 ~ 25.00% (0.01 %)
NO 0 ~ 3,000ppm (1ppm)
NO2 0 ~ 2,000ppm (1ppm)
Lamda 0 ~ 2.000 (0.001)
Power Supply AC 220V (50 / 60Hz)
Operating Temp 5℃ ~ 45℃
Communication LAN
Dimension 460W×260D×290H [mm]
Weight 13 kg
