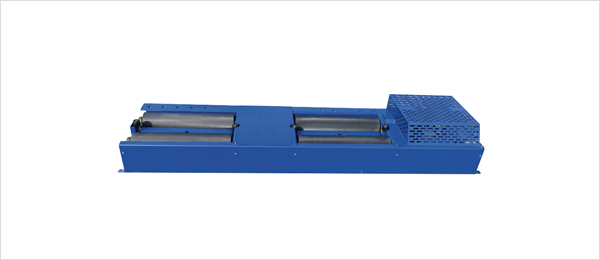

Chassis Dynamometer

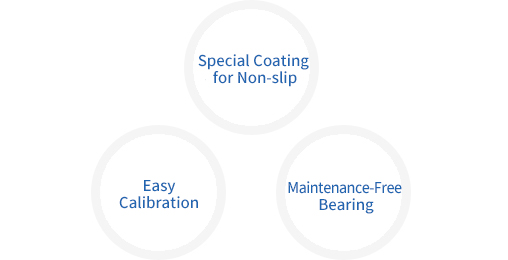

Features

  • Galvanized Steel Frame, 6T

  • Corrosion Proof

  • Special-coated roller surface for non-slip (patented)

  • High-powered motor, 7.5kW (10HP) functioning

  • Driving resistance simulation for ASM-2525, Lug-down and KD-147

  • Power and torque measurement under road diving condition

  • External buttons for lift-up/down and emergency stop

  • Control of equipment via serial interface, RS-232C

Specification Max Axle Load 10,000 kg
Dimension 3,800Wx1,030Dx460H [mm]
Power Supply AC 380V (50 / 60Hz)
Roller Set Diameter 216 [mm]
Length 1,000 [mm]
Max Speed 160 km/h
Roller Surface Powder coating
Track Inside 710 [mm]
Track Outside 2,680 [mm]
Rotation Direction One-way
PAU 1 EA
Coil 16 EA
Cooling Type Air-cooling
Motor Max Output 7.5 kW
Max Speed 95 km/h
Lifting Device Operating Method Pneumatic (Integrated)
Operating Speed Within 5 sec
Compressed Air Min. 6 bar / Max. 10 bar
Air bellows 4 EA
Sensor Speed Measurement Sensor Encoder
Vehicle Weight Measurement Load Cell
PAU (Power Absorber Unit) 0 ~ 509PS (0.1PS)

Hybrid Chassis Dynamometer (Brake Tester + Speedometer + Chassis Dynamometer)

  • Hybrid Chassis Dynamometer is integrated with Brake tester, Speedometer and Chassis Dynamometer

  • Obtained type approval for the first time in Korea as an integrated testing
    system

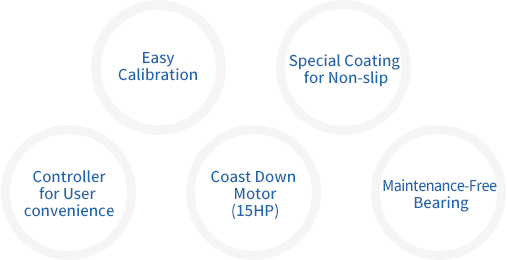

Features

  • Galvanized Steel Frame, 6T

  • High-powered motor, 11kW (15HP) functioning overheating protection

  • Corrosion Proof

  • Special-coated roller surface for non-slip (patented)

  • Driving resistance simulation for ASM-2525, Lug-down and KD-147

  • Convenient entry and exit of a test vehicle with 3 lifting device sets.

  • External buttons for lift-up/down and emergency stop

  • Control of equipment via serial interface, RS-232C

Specification Max Axle Load 15,000 kg
Dimension 4,410Wx1,030Dx1,000H [mm]
Power Supply AC 380V (50 / 60Hz)
Roller Set Diameter 212 [mm]
Length 1,000 [mm]
Max Speed 160 km/h
Roller Surface Grooved
Track Inside 850 [mm]
Track Outside 2,850 [mm]
Rotation Direction One-way
PAU 1 EA
Coil 16 EA
Cooling Type Air-cooling
Motor Max Output 7.5 kW (Brake Tester 3.75 kW)
Max Speed 95 km/h
Lifting Device Operating Method Pneumatic (Integrated)
Operating Speed Within 5 sec
Compressed Air Min. 6 bar / Max. 10 bar
Air bellows 6 EA
Sensor Speed Measurement Sensor Encoder
Vehicle Weight Measurement Load Cell
Vehicle Detection Proximity Sensor
PAU (Power Absorber Unit) 0 ~ 603PS (0.1PS)

HDV Chassis Dynamometer

Features

  • Galvanized Steel Frame, 6T

  • High-powered motor, 11kW (15HP) functioning overheating protection

  • Corrosion Proof

  • Rubber damper adapted to absorb shock and transmit power

  • Special-coated roller surface for non-slip (patented)

  • Driving resistance simulation for Lug-down and KD-147

  • Convenient entry and exit of a test vehicle with lifting device sets.

  • External buttons for lift-up/down and emergency stop

  • Control of equipment via serial interface, RS-232C

Specification Max Axle Load 15,000 kg
Dimension 4,190Wx2,600Dx600H [mm]
Power Supply AC 380V (50 / 60Hz)
Roller Set Diameter 452 [mm]
Length 1,050 [mm]
Max Speed 180 km/h
Roller Surface Grooved
Track Inside 700 [mm]
Track Outside 2,800 [mm]
Rotation Direction One-way
PAU 2 EA
Coil 32 EA
Cooling Type Air-cooling
Motor Max Output 11 kW
Max Speed 95 km/h
Lifting Device Operating Method Pneumatic (Integrated)
Operating Speed Within 5 sec
Compressed Air Min. 6 bar / Max. 10 bar
Air bellows 18 EA
Sensor Speed Measurement Sensor Encoder
Vehicle Weight Measurement Load Cell
PAU (Power Absorber Unit) 0 ~ 1,048PS (0.1PS)
